Setting up a Motorola VT2x42 for Acanac

This page discusses the VoIP settings for the VT2x42 family of VoIP routers. For the router settings, please consult the user manuals: VT2142 VT2442 VT2542
Before you configure the router, you will need an e-mail from Acanac with your account settings. They usually send it to you 2-3 days after you open your account and it will have a subject like "Your Soft Phone order at Acanac is ready". In the e-mail you will find your phone number, the password and the domain (the SIP server).
Connect all the cables: power cord, the blue WAN port to your modem (or router), your PC to one of the yellow LAN ports and a phone into the green Phone 1 port. Wait a few seconds for the router to power up, then open a web browser and type http://192.168.15.1
Login with username Admin and blank password

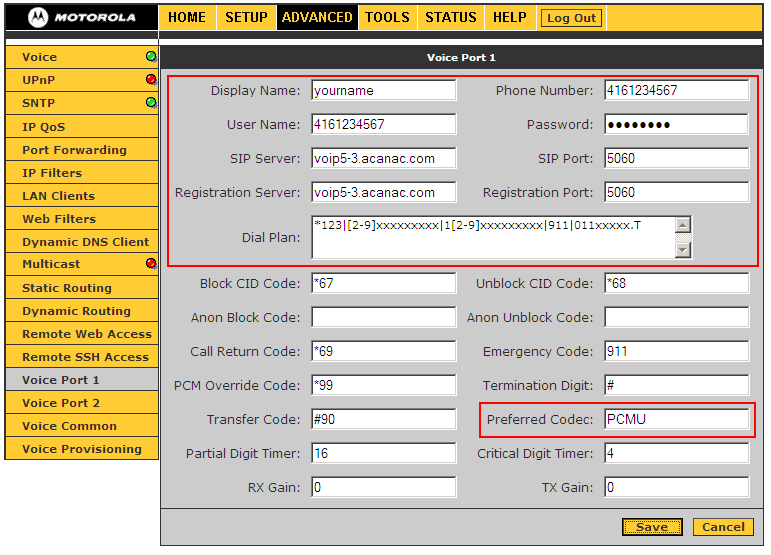

Click Advanced on the top menu, then Voice Port 1 on the left



Enter the following settings:
- Display name: can be anything, you can put your name here
- Phone number: this is the number that Acanac gave you, something like 4161234567
- User name: same as the phone number
- Password: the SIP password from the Acanac email
- SIP Server: this is in the e-mail they sent you with the account settings, something like 66.49.255.42 or voip5-3.acanac.com
- SIP Port: 5060
- Registration Server: same as SIP Server
- Registration Port: 5060
- Dial Plan: copy/paste the following string
*123|[2-9]xxxxxxxxx|1[2-9]xxxxxxxxx|911|011xxxxx.T
- (optional) Preferred codec: the default value, PCMU means to use the g711 codec. If you wish to change the codec to g729 type G729 in this field

If you're having issues dialing DTMF digits (when using calling cards, dialing phone extensions, etc) go to the Advanced on the top menu, then Voice Common on the left:



Try all the values between 1 and 4 for the DTMF Mode setting.

To factory reset the adapter

Go to the Tools menu at the top and then Restore Defaults on the left. Check the boxes that apply (Provisioned Parameters to reset the VoIP settings, Non-Provisioned Parameters to reset the router settings) and click Restore Defaults
