Setting up the D-Link VWR for VBuzzer

This page discusses the VoIP settings for the D-Link VWR VoIP router. For the router settings, please consult the user manual available here.
Connect all the cables: power cord, the blue WAN port to your modem (or router), your PC to one of the yellow LAN ports and a phone into the green Phone 1 port. Wait a few seconds for the router to power up, then open a web browser and type http://192.168.15.1
Login with username Admin and blank password



Click Admin on the top menu, then VoIP on the left



The first tab, SIP is very unlikely to need any changes. Please click on Line 1

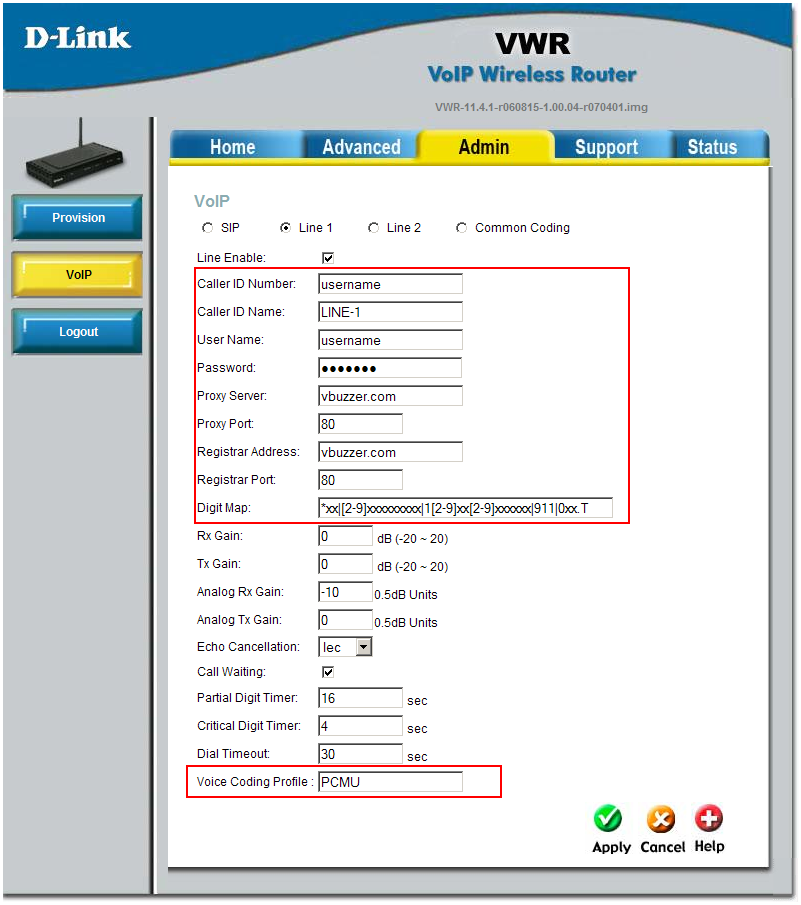

Enter the following settings:
- Line Enable: yes
- Caller ID Number: enter your vbuzzer username
- Caller ID Name: enter your name here
- User Name: enter your vbuzzer username
- Password: your vbuzzer password
- Proxy Server: enter vbuzzer.com
- Proxy Port: 80
- Registrar Address: vbuzzer.com
- Registrar Port: 80 here
- Dial Plan: the default value is OK
- Voice Coding Profile (optional): the default value PCMU is for using the g711 codec. If your VoIP provider advises you to use the g729 codec, enter G729 in this field.
Click Apply to save the settings.

If you have issues dialing DTMF tones (such as dialing an extension after the call is connected, or using calling cards), go to the Common Coding option and try different values for Digit Relay Mode (between 1 and 4)



To factory reset the adapter

To restore the device to factory defaults, go to Support (at the top) and then System (on the left). Check the boxes that you desire (Provisioned Parameters is for VoIP settings and Non-Provisioned Parameters is for router settings
