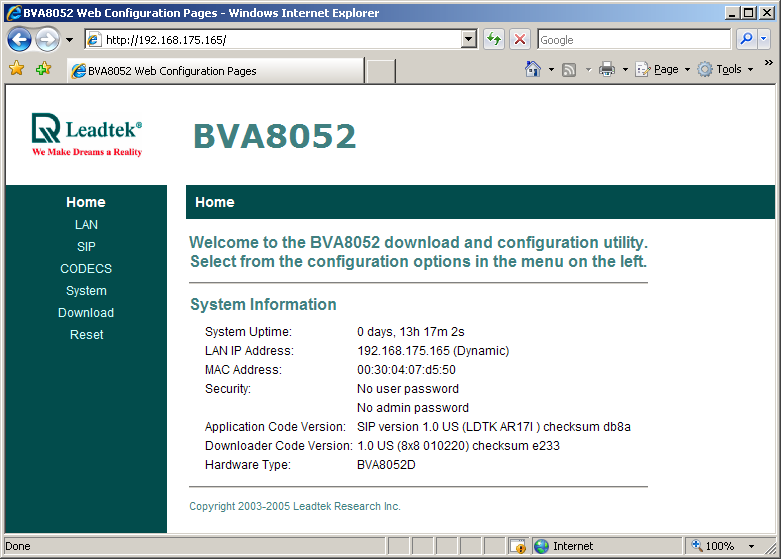

Plug in the adapter (power, one of the Ethernet ports to your router and a phone into Line 1). Wait a few seconds, then pick up the phone and push the reset button briefly. The adapter will start playing a menu, hit 1 to listen to the IP address. Then enter that IP address in a browser.

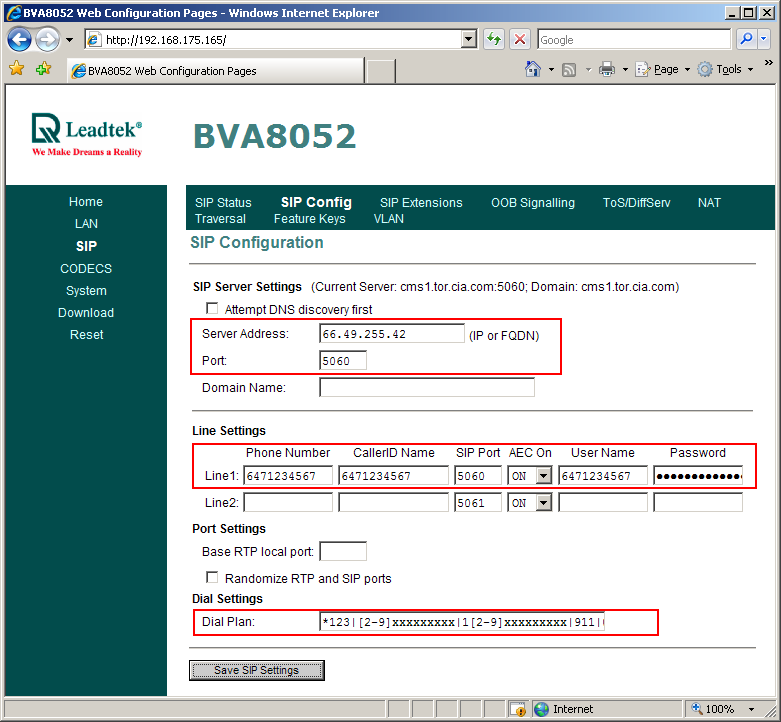

Click SIP on the left menu, then SIP Config at the top
Enter the following settings:
- Server address: this is in the e-mail they sent you with the account
settings, something like 220.127.116.11
- Port: 5060
- Phone number: this is the number that Acanac gave you, something like
- CalledID Name: same as Phone Number
- User Name: same as Phone number
- Password: the SIP password from the Acanac email
- Dial Plan: copy/paste the following string
Now click Save SIP Settings at the bottom, then go to the NAT

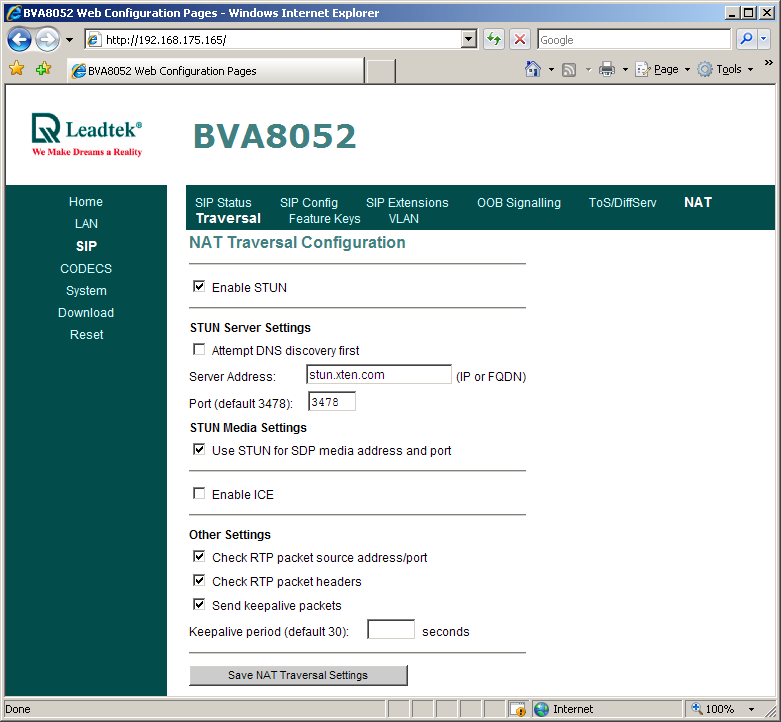

Enter stunserver.org under the Server Address and enable all the checkboxes except Attempt DNS discovery and Enable ICE like in the screenshot above, then click Save NAT Transversal Settings.

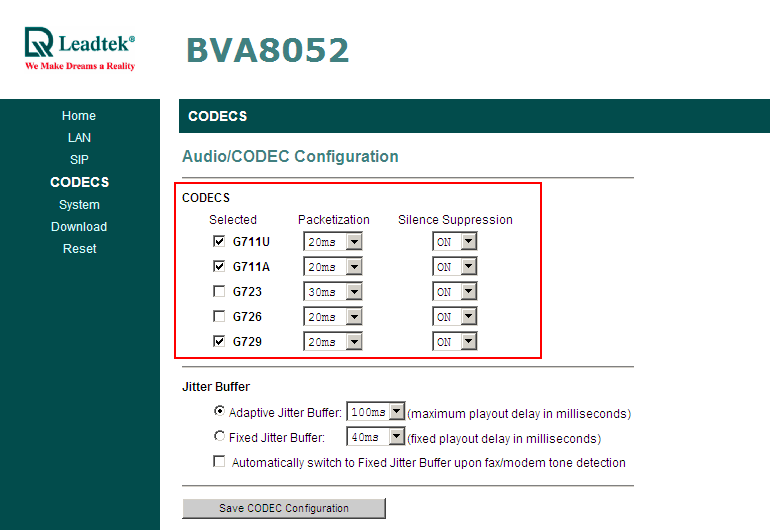

Next, click the CODECS link on the left menu.
Enable the G729 codec then click Save CODEC Configuration at the bottom.
Now reboot the adapter. Wait 1-2 minutes after which you should have dial tone.
To factory reset the adapter
- unplug the power.
- connect the telephone to PHONE 1 port and lift the handset off the telephone
- use a pin to push the RESET button at the back of the device. Hold it while
you plug the power back to the device. The Power LED should be flashing rapidly.
- continue to hold the RESET button until you see four of the six LEDs flashing
in a pattern (takes about 5-6 seconds). Release the pin and wait until all LEDs
- put the handset back on-hook

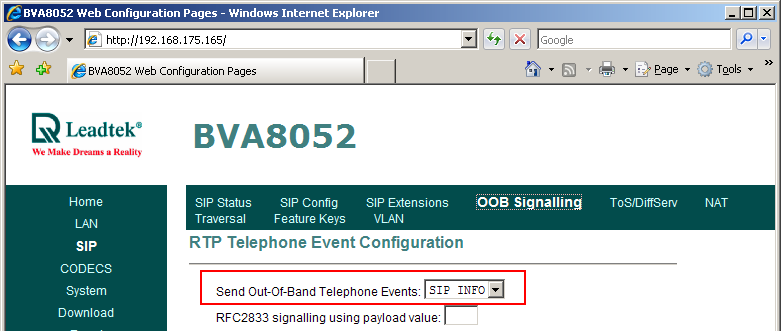

If you're having issues dialing DTMF digits (when using calling cards, dialing
phone extensions, etc) go to the SIP menu then OOB Signalling tab:
Change the Send Out-Of-Band Telephone Events to SIP INFO then click
Save OOB settings at the bottom and power cycle the adapter. If that still
doesn't help, try the other options for that setting.
